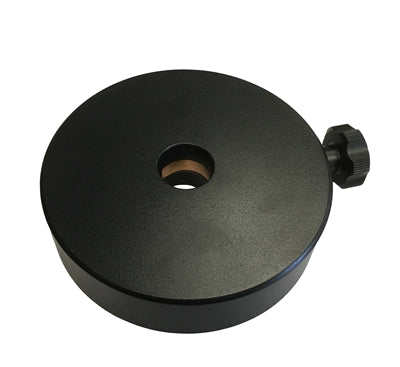

This newly designed 5kg (11lb) counterweight (CW) uses compression ring to lock the CW onto a CW shaft. Comparing to traditional "point contact" locking mechanism via a locking screw and a pin, the compression ring provides more secure locking method through distributed surface contact.
This CW is designed for following iOptron Mount:
- CEM70/CEM70G
- CEM60/CEM60EC
- GEM45/GEM45EQ
- iEQ45/iEQ45 Pro
It can be used for other mount with a 28mm diameter counterweight shaft.
| Weight: | 5 kg (11 lbs) |
| Outer diameter : | 148 mm (5.8") |
| inner diameter: | 28.5 mm (1.12") |
| Height: | 38 mm (1.5") |
| Locking mechanism: | Locking screw with compression ring |
| Locking screw thread size: | M8 |
Actual dimensions, except inner diameter, may be different.
